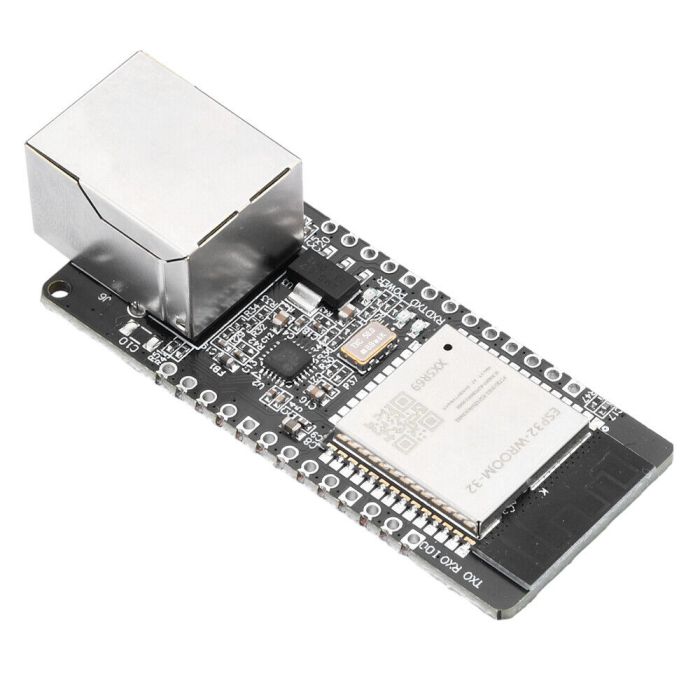

ESP32 WT32-ETH01 Embedded Serial Port Networking Bluetooth + Ethernet + WiFi Combo Development Module

A development board based on an ESP32 with also an Ethernet connection. With this board you can make connections via Wi-Fi, Bluetooth and Ethernet. Pin headers are included but not soldered to the board.

Specifications:

• Supply voltage: 3.3V DC (via 3V3 pin) or 5V DC (via 5V pin)
• GPIO Voltage: 3.3V
• Micro controller:
  • Chip: ESP32-D0WD-Q6 (WT32-S1)
  • Clock Frequency: 240MHz
  • Processor cores: 2
  • SRAM: 520KB
  • Flash memory: 4MB
  • Built-in Wi-Fi
  • Built-in Bluetooth
  • Number of GPIO pins: 15
  • Number of PWM pins: 12
  • Number of analog input pins (ADC): 11
  • Number of analog output pins (DAC): 0
• USB to serial converter: None (use an external one)
• Ethernet:
  • Chip: LAN8720A
  • Transfer rate: 10/100Mbps
  • Connector: RJ45
