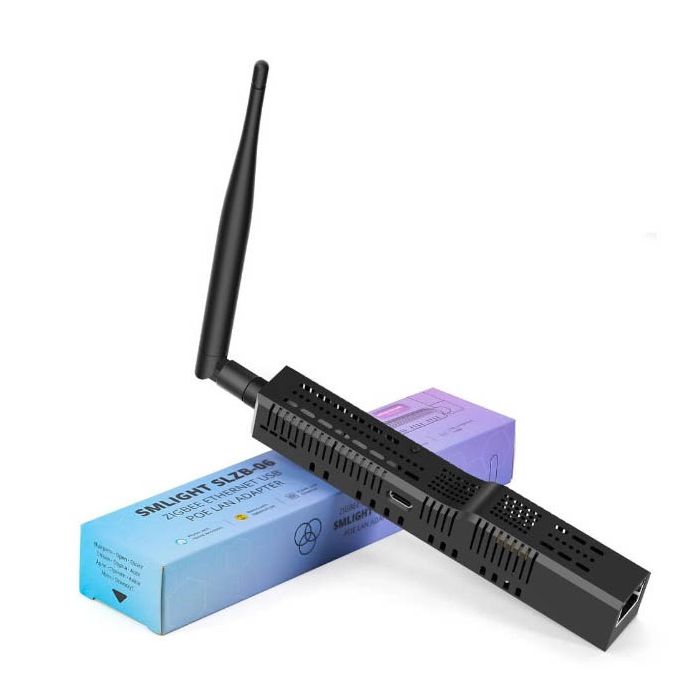

SMLIGHT SLZB-06 Zigbee 3.0 to Ethernet, USB and WiFi Gateway Coordinator with PoE
£43.99
Out of stock
SKU
SLZB-06
A Zigbee coordinator for Home Assistant with USB, WiFi and LAN Power over Ethernet connections based on CC2652P. Recommended for Zigbee2MQTT and ZHA.
free shipping
Hassle Free Returns
- Works with Home Assistant (native ZHA support), out of the box
- Works with Zigbee2MQTT, out of the box
- Works with ZHA, out of the box
- Supports Matter-over-Thread
- Uses CC2652P chip
SMLIGHT SLZB-06 Zigbee LAN PoE USB WiFI coordinator based on CC2652P with Cortex M4F 48Mhz, 88kB RAM
TCP / IP Zigbee coordinator used to control Zigbee devices in smart home systems using the Zigbee2MQTT application or native ZHA integration.
ZIGBEE to LAN, USB or WIFI.
Adapter based on CC2652P with +20dB Amplifier and 5dB antenna.
Pre-flashed and ready to use.
Can be powered via POE or micro-USB, with micro-USB to USB-C adapter also included.
Zigbee and Core firmware OTA update support (one-click update).
Most powerful version of ESP32 chip inside: 2 cores @ 240Mhz & 6Mb memory.
VPN tunneling with Home Assistant and security authorizations.
Securely protected login with password to web-interface, internal whitelist firewall.
Can cover multiple buildings with 2 or more coordinators and Zigbee2MQTT. You can install as many coordinators to work with Zigbee2MQTT+Home Assistant as you want.
15 language localization interfaces.
LED control
Small design, just 160x22x24mm.
Included:
SMLIGH SLZB-06 Zigbee LAN coordinator
5dB Antenna
Connector micro-USB to type-C
Manual QR
Adhesive tapes
| SLZB-06 SPECIFICATIONS | |
| Main Zigbee 3.0 chip | CC2652P |
| Main control chip | ESP32 Espressif |
| USB/UART converter | CP2102 |
| Ethernet SoC | LAN8720 |
| Zigbee SoC output gain | +20dB |
| Additional gain antenna | +5dB |
| Ethernet support | Yes |
| WiFi support | Yes |
| PoE support | Yes |
| PoE standard supported | IEEE 802.3af (15W) |
| USB Type-C control | Yes |
| ESP32 Flasher integrated | Yes, based on CP2102 |
| ESP32 Autoboot | Yes, through DTR / RTS |
| Pre-flashed | Yes, Zigbee and ESP |
| Zigbee 3.0 Coordinator mode | Yes |
| Zigbee 3.0 Router mode | Yes |
| Zigbee to Ethernet | Yes |
| Zigbee to USB | Yes |
| Zigbee2MQTT support | Yes |
| ZHA support | Yes |
| Tiny design | Yes, 160x22x24mm |
| Operating environment | +5 – +35 C |
Comparison of the SLZB-06 line:
| Connection | Zigbee, WiFi 2.4 GHz, PoE, LAN |
|---|---|
| Works with | Home Assistant, ZHA (HA), Zigbee2MQTT |
| Brand | SMLIGHT |
| Made in | China |
