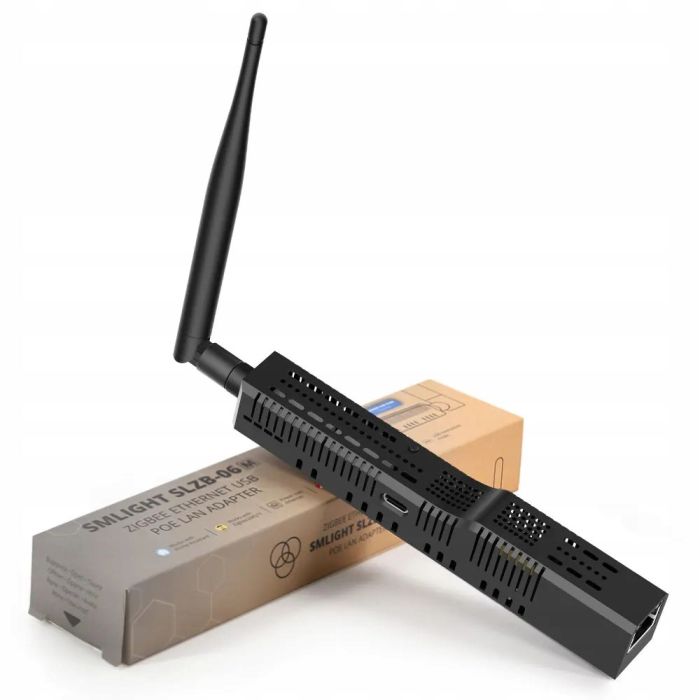

SMLIGHT SLZB-06M Zigbee 3.0 to Ethernet, USB and WiFi Gateway Coordinator with PoE
SAVE £7.00
Special Price
£42.99
Regular Price
£49.99
In stock
SKU
SLZB-06M
A Zigbee coordinator for Home Assistant with USB, WiFi and LAN Power over Ethernet connections based on EFR32MG21. Recommended for Zigbee2MQTT and ZHA.
free shipping
Hassle Free Returns
- Compatible with Home Assistant (native ZHA support)
- Compatible with Zigbee2MQTT
- Compatible with ZHA
- Supports Matter-over-Thread
- Uses EFR32MG21 chip
SMLIGHT SLZB-06M Zigbee LAN PoE USB WiFI coordinator based on EFR32MG21 with Cortex M4F 48Mhz, 88kB RAM
TCP / IP Zigbee coordinator used to control Zigbee devices in smart home systems using the Zigbee2MQTT application or native ZHA integration.
ZIGBEE to LAN, USB or WIFI.
Adapter based on EFR32MG21 with +20dB Amplifier and 5dB antenna.
Pre-flashed and ready to use.
Can be powered via POE or micro-USB, with micro-USB to USB-C adapter also included.
For using with Zigbee2mqtt (recommended adaptor - using ember driver), please refer to Zigbee2mqtt website, section Emberzet Adaptors (Silicon Lab).
Zigbee and Core firmware OTA update support (one-click update).
Most powerful version of ESP32 chip inside: 2 cores @ 240Mhz & 6Mb memory.
VPN tunneling with Home Assistant and security authorizations.
Securely protected login with password to web-interface, internal whitelist firewall.
Can cover multiple buildings with 2 or more coordinators and Zigbee2MQTT. You can install as many coordinators to work with Zigbee2MQTT+Home Assistant as you want.
15 language localization interfaces.
LED control
Small design, just 160x22x24mm.
Included:
SMLIGH SLZB-06M Zigbee LAN coordinator
5dB Antenna
Connector micro-USB to type-C
Manual QR
Adhesive tapes
| SLZB-06M SPECIFICATIONS | |
| Main Zigbee 3.0 chip | EFR32MG21 Silicon Labs |
| Main control chip | ESP32 Espressif |
| USB/UART converter | CP2102 |
| Ethernet SoC | LAN8720 |
| Zigbee SoC output gain | +20dB |
| Additional gain antenna | +5dB |
| Ethernet support | Yes |
| WiFi support | Yes |
| PoE support | Yes |
| PoE standard supported | IEEE 802.3af (15W) |
| USB Type-C control | Yes |
| ESP32 Flasher integrated | Yes, based on CP2102 |
| ESP32 Autoboot | Yes, through DTR / RTS |
| Pre-flashed | Yes, Zigbee and ESP |
| Zigbee 3.0 Coordinator mode | Yes |
| Zigbee 3.0 Router mode | Yes |
| Zigbee to Ethernet | Yes |
| Zigbee to USB | Yes |
| Zigbee2MQTT support | Yes |
| ZHA support | Yes |
| Tiny design | Yes, 160x22x24mm |
| Operating environment | +5 – +35 C |

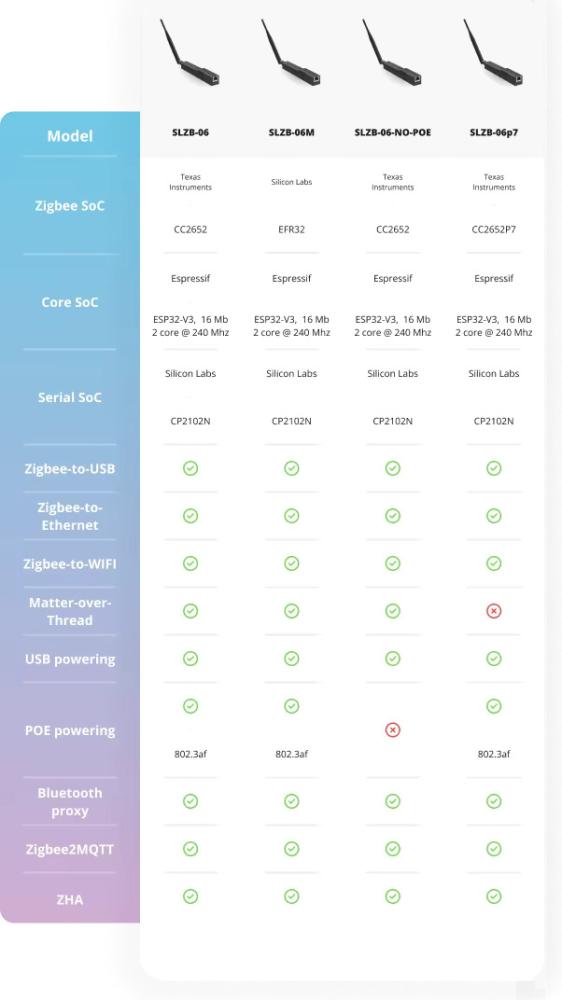

Comparison of the SLZB-06 line:
| Connection | Zigbee, WiFi 2.4 GHz, Matter-over-Thread, PoE, LAN, USB |
|---|---|
| Works with | Home Assistant, ZHA (HA), Zigbee2MQTT |
| Brand | SMLIGHT |
| Made in | China |
